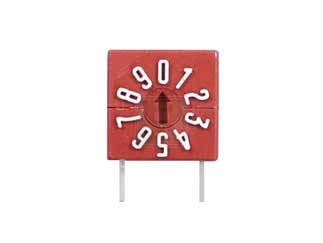

Zadajnik kodu EECO 231002G
Cena brutto:
Charakterystyka:
Supplier:
EECO
Part No:
231002G
RoHS:
Unknown
Supplier Standard Pack:
44
Maximum Non Switching Current:
1000 mA
Row Space:
7.62 mm
Maximum AC Voltage Rating:
N/A
Family:
2300
Contact Material:
Copper Alloy
Maximum DC Voltage Rating:
5 V
Terminal Type:
PC Pins
Seal Description:
Dust
Total Pitch:
5.08 mm
Actuator Material:
N/A
Pole Throw Configuration:
SP10T
Mechanical Life:
10000 Cycles
Number of Positions:
10
Packaging:
N/A
Contact Plating:
Gold/Nickel
Electrical Life:
N/A
Body Orientation:
Right Angle
Actuator Length:
N/A
Terminal Pitch:
2.54 mm
Product Weight:
0.85 g
Mounting:
Through Hole
Maximum Contact Resistance:
100 mOhm
Seal Location:
N/A
Thread Length:
N/A
Actuator Style:
Dial
Dielectric Strength:
N/A
Minimum Insulation Resistance:
1000 MOhm
Operating Temperature:
-25 to 85 °C
Contact Rating @ Voltage:
0.1@5VDC A
Dimension:
10.92 x 10.54 x 10.8 mm
| EECO 231002G | |
| Towar | |
| 23 (23%) | |
| szt. | |
| PRZEŁĄCZNIKI |
- zadajniki kodu
